Updates - December 12, 2024¶
Updates
Project management
Data gathering and prep
Unified data set is complete and will be part of deliverable
Will update new data in this format
CV updates
NLP updates
Deliverable updates
YOLO Pre-Processing Updates¶
Last meeting we discussed a final model for vape detection that was
trained on 3 separate datasets, 2 of which were web scraped and
labeled by GTRI.
All previous models we trained were only trained for vape detection,
we decided to add an additional class of vape juice as these contain a
lot of information of the brands, flavors, and nicotine content.
We went back through previous data and re-labeled it to include
bounding boxes for vape juices, a total of 380 vape juices were
annotated and added to the training data.
A new model was then trained for these two classes and used to make
predictions on all 9 image datasets that we scraped from the web.
This new class allows for extracting images with vape juices to be
passed to a VLM for further processing.
VLM Examples¶

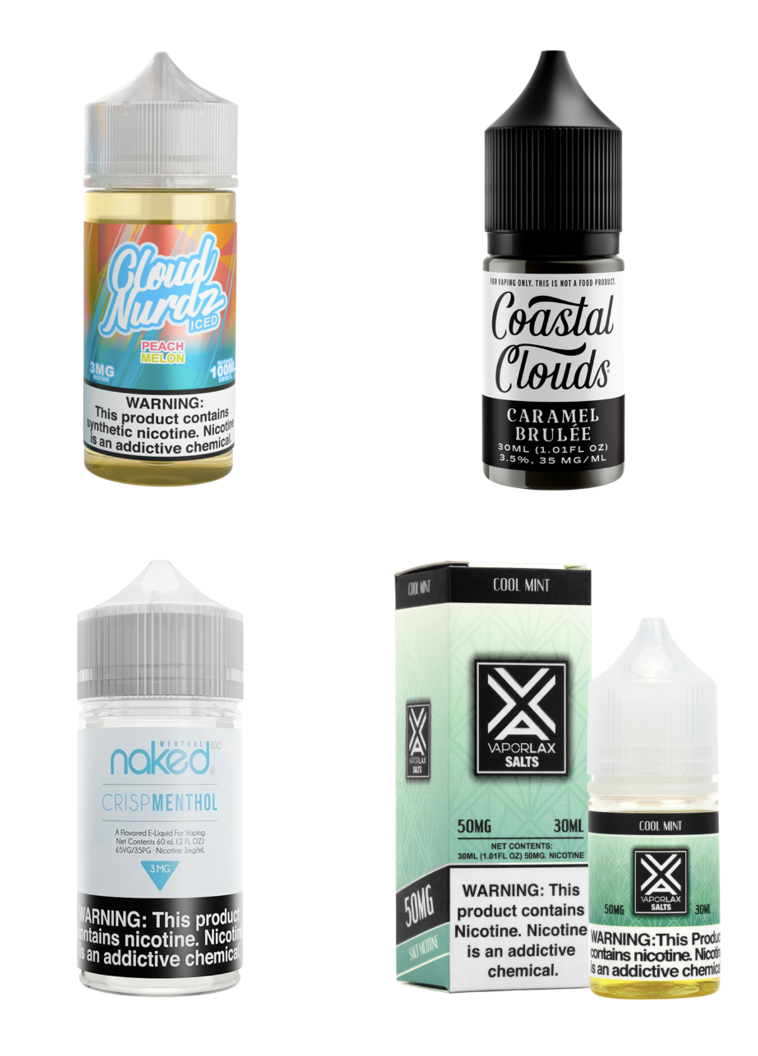

I passed the images to the left to NVIDIAs new VLM asking the
following question for each.
Please give me the following information about this vape juice in a
comma separated list. Brand name of juice, juice flavor, size of the
bottle, nicotine content, is it a cooling flavor.
These are the responses I received
Cloud Nurdz, Peach Melon, 100ml, 3mg, Yes
Coastal Clouds, Caramel Brule, 30ML (1.01FL OZ), 3.5%, 35 MG/ML, No
Naked 100, Crisp Menthol, 60ML, 3MG, Yes
VaporLax, cool mint, 30ml, 50mg, Yes
VLM In-Context Learning¶
In context learning involves interacting with the VLM and providing it
examples of images and corresponding responses expected.
No re-training or tuning is done in the sense that the weights are not
changed.
These examples are provided to model and then unseen images are given
to the model and it is asked to provide the same information that it
was shown for the examples.
Recent papers have shown that results can be significantly increased
by providing the model as few as 40 examples of desired output.
We are currently working on the example prompts and a test set we can
use for testing this method.
NLP¶
Last time, we discussed iterative improvement of PRODUCT TYPE
classification
Since then, we researched different product types available for vapes
Documentation available for review
Notably, added an Open System class for refillable vape products (not
disposable / closed system)
We manually labeled >800 products for reference
Preliminary testing using new LLM prompt shows greater accuracy with
revised classes
Also, how should we handle CBD products?
Flavors
Continuing work on vapewh, vape.com
RegEx (pattern matching) can capture majority of flavors, but edge
cases causing issues
Working to set up LLM for parsing

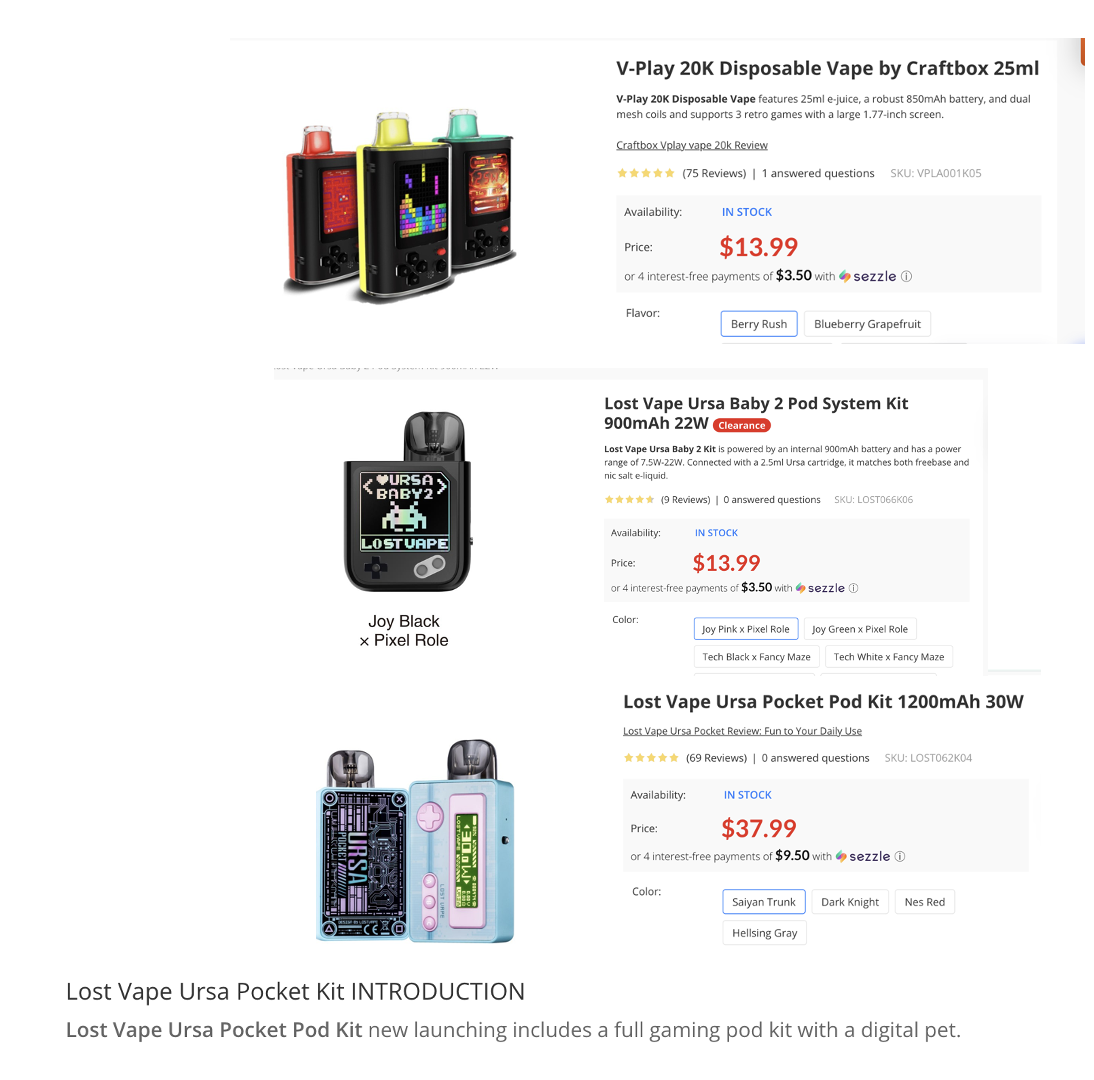

Gaming Variable¶
Evaluated vapewh, vapesourcing, perfect_vape, csvape, vapingdotcom,
vapedotcom, myvaporstore, getpop
Only found about ~67 items (sent earlier today)
Main themes
Gaming features or actual games
Built-in games, retro games, mini-games, and classic games.
Gaming-inspired animations and game-like elements.
Gaming-Inspired Design and Animations
Animated screens, fidget spinners, TRON design
Reward and Tracking Systems
Reward systems with medals and trophies, puff counters, etc.
We can build NLP to track these but still quite rare
Consolidating Data¶
Took scraped data from vapewh, vapesourcing, perfect_vape, csvape,
vapingdotcom, vapedotcom, myvaporstore, getpop, elementvape and merged
into one dataset
Future datasets can be added with only tweaks to conversion file
Process:
Path through every csv file in data folder
Open every file as a pandas dataframe and concatenate dataframes
Using conversion file, smush matching columns together
Clean up nested lists, lists of nan values, formatting data to be
prettier
Working on some final cleaning and code restructuring
Final Products:
Excel file with all products
Excel file of columns to be blended
Script to rerun data blending and cleanup
Documentation on how to use the scripts and how to format incoming
data
Documentation on what different columns mean (95 total columns!)
Deliverable Update¶
Sync to github from our private gitlab is set up and will set to run
regular updates
Initial code is moved there
Read The Docs setup and configured
Requires additional permissions to run automatically, but can run
manually
Team is starting to migrate documentation over to that format
Wrap up of this part of the contract
Wrapping up work
Will have code, documentation, and any data delivered and sent over
e-mail
Will be done by EOM
